SQ-Top Ridges Cap Roll Forming Machine 8-12m/Min Speed PLC Control Machine

Name: SQTop Ridges Cap Roll Forming Machine 812mMin Speed PLC Control Machine
Brand: CHBEST
Price: 1 USD

Buy cheap SQ-Top Ridges Cap Roll Forming Machine 8-12m/Min Speed PLC Control Machine product

Brand Name : CHBEST

Model Number : XY350

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : SQ-Top Ridges Roll Forming Machine 8-12m/Min Speed PLC Control Machine

Machine speed : 8-12m/min

Machine power : 3kw+3kw

Lifetime : more than 10 years

Warranty : 18month

Control system : PLC

Contact Now

SQ-Top Ridges Roll Forming Machine 8-12m/Min Speed PLC Control Machine

advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Pressing and Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Parameter

Product name			ridge cap galvanized
NO.	Items		Parameters	Remark
1	Suitable Material	Type	GI/PPGI/AL
		Width	300-5000mm	Custom
		Thickness	0.30-0.80mm
2	Product Specifications	Length	Any length
		Length Tolerance	±2mm/6m
3	Working Speed	10-15 m/min		Standard machine
4	Control System	Mitsubishi/Siemens PLC& transducer		Custom
5	Total Power	4+3KW
6	Total Weight	About 3.0T		Up to final design

Working conditions
1.working size	15m x 2m x 4m
2.Power supply	6kw
3.Frequency	50-60HZ
4.Wires/cables	4-6mm²(length according to workshop)
5. Labor cost	2 workers
6. Tools	Spanners and screwdriver
7.Lift device	3-5t forklift or crane

Terms

Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.

Photos

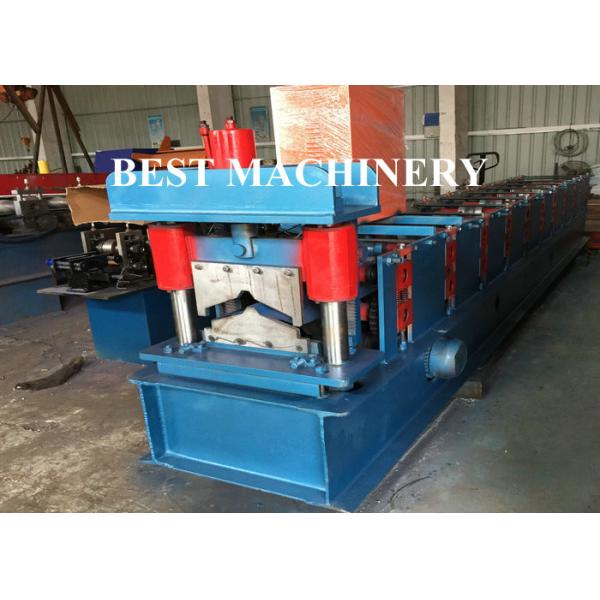

SQ-Top Ridges Cap Roll Forming Machine 8-12m/Min Speed PLC Control Machine
